Begadi CNC hop up komora MIMAS 90 pro P90

With the MIMAS 90, we offer our customers a modern and flexible CNC HopUp Unit for the PD9/P90 series.
As with our other CNC units, we rely on the proven TDC/Rotary system and thus enable very precise adjustment in combination with a constant HopUp effect. If you want to take advantage of all the benefits of the TDC, a 5mm Tensioner (for standard inner barrels) and 7mm (for inner barrels with a large window) made of aluminum are included

The pressure level/hardness can also be freely selected using the included rubbers. The soft rubber (black) ensures a soft pressure (the HopUp rubber can give way more with a shot), the red variant is harder and is suitable in combination with hard Buckings (70°) and heavy BBs, which makes the HopUp effect somewhat more constant. The adjustment wheel needs to be fine-tuned. We recommend using the black version for most HopUp rubbers

Precise aluminum adjustment wheel with scale. Like the unit itself, our adjustment wheel is also made of 7075 aluminum CNC and very finely graduated. 10 markings (infinitely variable) are available, which makes adjustment with different BBs or during disassembly easier

Nozzle: We include a CNC-machined tight fit nozzle with 20.50mm and O-ring with the unit. This is specially adapted to the Cylinderheads and, together with the MIMAS, ensures straight alignment with the Bucking. This improves the seal and slightly increases the energy.

Material and tolerance: The unit and the adjustment wheel are made of 7075 aluminum with a tolerance of +/- 0.10mm. For very important dimensions such as the Tensioner and the Tensioner guide, the tolerance is +/- 0.05mm

Feeding: Our MIMAS 90 has no influence on the feeding of the P90. The original Cyma magazines usually work very well up to 0.32g BBs. At 0.40g, misfeeds can occur due to a weak Spring in the magazine

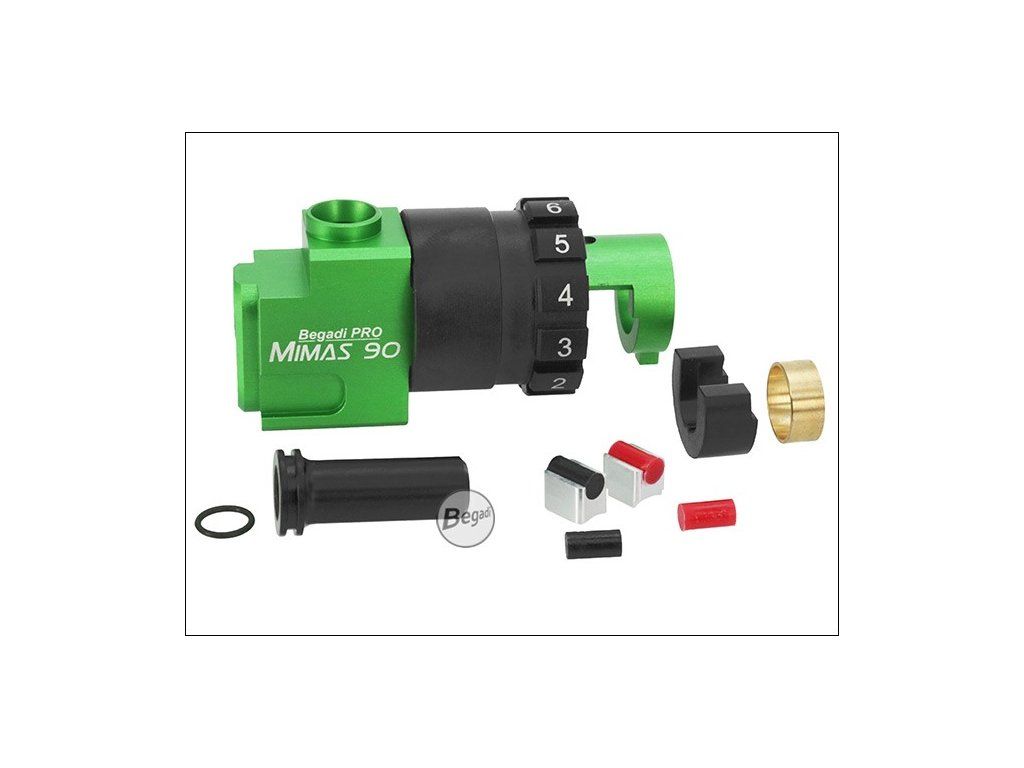

The scope of delivery includes

  • 1x CNC HopUp Unit made of 7075 aluminum
  • 1x adjustment wheel made of 7075 aluminum with position indication
  • 1x CNC POM C-Clip for standard AEG and hybrid Barrels
  • 1x brass ring for barrel centering (8.50 – 8.60mm)
  • 1x O-ring for adjustment wheel
  • 1x O-ring for adjustment wheel (fixation)
  • 2x O-ring for Nozzle (1x installed, 1x replacement)
  • 1x Tensioner for 5mm HopUp systems
  • 1x Tensioner for 7mm HopUp systems
  • 2x rubber insert for Tensioner – hard (red)
  • 2x rubber insert for Tensioner – light (black)
